DT862
Share：
Summary
DT862 three-phase four wire active power meter is used to measure the rated frequency of 50Hz, three phase AC network active or reactive power consumption of the induction meter. The three-phase power supply energy meter technical performance in full compliance with the GB/T17215.311-2008 "AC measurement equipment special requirements of the eleventh part: mechanical and electrical active power meter (0.5, 1 and 2)" national standards and IEC521 national standards.
Main features
■The voltage and current of iron core are made of high quality silicon steel sheet high speed punch Tinertoy molding
■The instrument can be made of three kinds of precious stones or magnetic or magnetic suspension
■Arch aluminum alloy die-casting integral support to ensure stable and reliable magnetic circuit
■The optional PC ABS, bakelite, plastic, glass, aluminum and other 5 kinds of shell
Main technical parameters
|
Item |
Technical data |
|
Accuracy class |
2 class |
|
Voltage specification |
3×220V/380V |
|
Current specifications |
3×1.5(6)A、3×3(6)A、3×2.5（10）A、3×5(20)A、3×10(40)A、3×15(60)A、3×20(80)A、3×30（100）A |
|
Reference frequency |
50Hz |
|
Operating voltage range |
Specified operating voltage range：0.9Un～1.1Un |
|
Extended operating voltage range：0.8Un～1.2Un |
|
|
Operating temperature range |
Specified operating temperature range：-25℃ ~+55℃ |
|
Limiting operating temperature range：-40℃ ~+70℃ |
|
|
Storage and transport limit temperature range：-40℃ ~+70℃ |
|
|
power dissipation |
≤1.2W |
|
Outline dimension |
≤40A 273mm×172mm×124mm（In order to prevail in kind） ≥60A 279mm×172mm×124mm（In order to prevail in kind） |

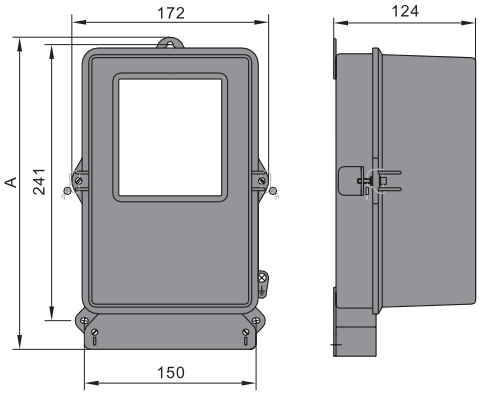

Outline overall and installing dimensions

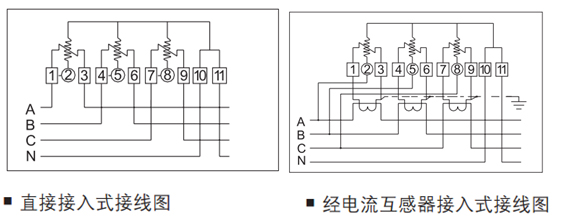

wiring diagram
