Summary

DTSD193/DSSD193 type three-phase multi-function watt hour meter, (hereinafter referred to as the instrument) is my company in order to adapt to China's power grid transformation, to adapt to China's national conditions and the development of active power meter. It has high accuracy and feasibility. The instrument adopts the international advanced ultra low power consumption large scale integrated circuit technology and SMT advanced technology, the key components of international brands, long-life devices, improve product reliability, prolong the service life. The meter is used to measure the active and reactive power, and the power can be copied by infrared communication. This instrument is designed to meet the standard GB/T 17215.321-2008 "1 stage and 2 stage static AC power meter," GB/T 17882-1999 "2 level and 3 level AC static reactive power meter," DL/T 645-2007 "multi function watt hour meter communication protocol" on the three-phase electric energy meter related technical requirements.

Main features

■The voltage and current of iron core are made of high quality silicon steel sheet high speed punch Tinertoy molding

■The instrument can be made of three kinds of precious stones or magnetic or magnetic suspension

■Arch aluminum alloy die-casting integral support to ensure stable and reliable magnetic circuit

■The optional PC ABS, bakelite, plastic, glass, aluminum and other 5 kinds of shell

Main technical parameters

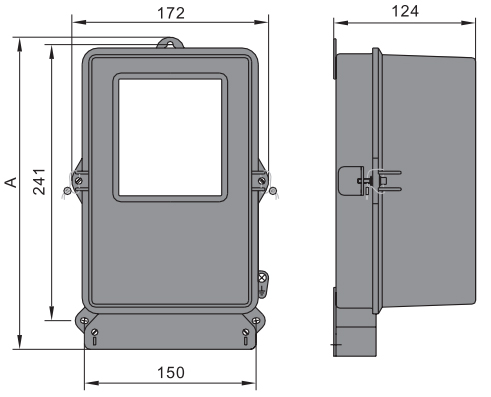

Outline overall and installing dimensions

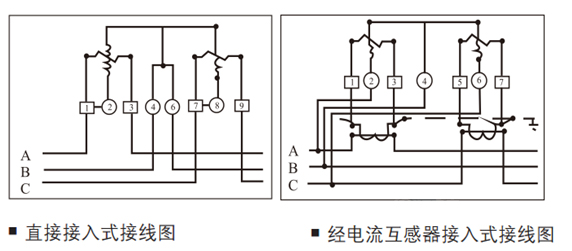

 wiring diagram
