DTSD193

Share:



Summary

DTSD193/DSSD193 type three-phase multi-function watt hour meter, (hereinafter referred to as the instrument) is my company in order to adapt to China's power grid transformation, to adapt to China's national conditions and the development of active power meter. It has high accuracy and feasibility. The instrument adopts the international advanced ultra low power consumption large scale integrated circuit technology and SMT advanced technology, the key components of international brands, long-life devices, improve product reliability, prolong the service life. The meter is used to measure the active and reactive power, and the power can be copied by infrared communication. This instrument is designed to meet the standard GB/T 17215.321-2008 "1 stage and 2 stage static AC power meter," GB/T 17882-1999 "2 level and 3 level AC static reactive power meter," DL/T 645-2007 "multi function watt hour meter communication protocol" on the three-phase electric energy meter related technical requirements.

Main features

The measurement of active power, total reactive power and reactive power with time sharing

With 12 months of active and reactive power record function

The maximum amount of reactive power and reactive power demand and the demand of the time, the demand cycle is 15 minutes, slip time is 1 minutes

Three phase power supply, one phase or two phase power, measurement accuracy is not affected. After power off, all stored data is not lost and can be maintained for more than 10 years

When the battery voltage is low, the alarm indicator light is on, and the corresponding battery symbol on the LCD is used to indicate the flicker

It can carry on the infrared communication through the handset terminal or the PC machine, completes the programming and the meter reading. Communication symbol bright, convenient and intuitive and reliable

Wide temperature and large liquid crystal display all kinds of information; electric energy display bit 6 bit integer, the 2 decimal

The electric energy meter has two kinds of communication modes, infrared and RS485, and the communication protocol accords with the DL/T645-1997 communication protocol of Multi-function Energy Meter

Energy meter using 3.6V, 1.2Ah high capacity lithium battery, the normal life of 10 years

It has the functions of time freezing, instantaneous freezing, convention freezing, daily freezing and freezing

The programmable switch open, the correct password state, by a "handheld meter zero" command, can remove all of the electricity and electricity events

The external clock chip has the functions of calendar, timing and automatic switching

Main technical parameters

Item

Technical data

Accuracy class

active 1 class、reactive2 class

Voltage specification

3×57.7/100V  3×220/380V

Current specifications

3×1.5(6)A3×3(6)A3×5(20)A3×10(40)A3×15(60)A3×20(80)A3×30(100)A

Reference frequency

50Hz

Specified operating voltage range

0.9Un1.1Un

Limiting operating voltage range

0.7Un1.2Un

Voltage loop power

6VA/1.5W

Current loop power

≤2VA

Data storage time after power outage

≥10 years

In the time zone table number

2

Day table number

2

Rate number

4

Day period

8

Display mode

LCD

Clock accuracy

≤0.5s/d23

Clock backup battery

3.6VDC ( battery capacity≥1.0Ah

Infrared communication parameters

The default baud rate 1200bps

RS485Baud rate

default 2400bps,Can be set to 1200bps2400bps4800bps9600bps

Outline dimension

270mm×170 mm×79mm(In order to prevail in kind)

Outline overall and installing dimensions

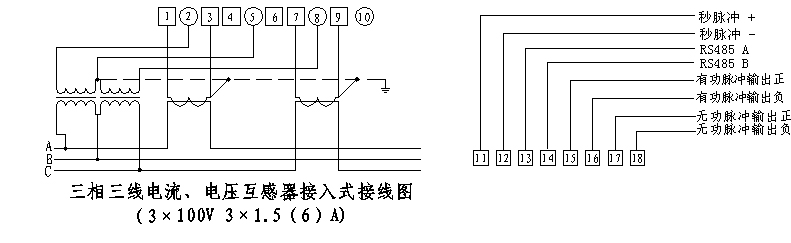

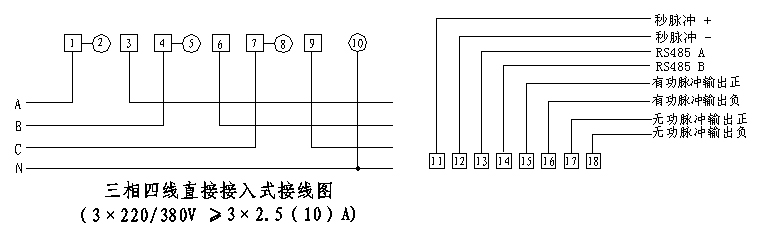

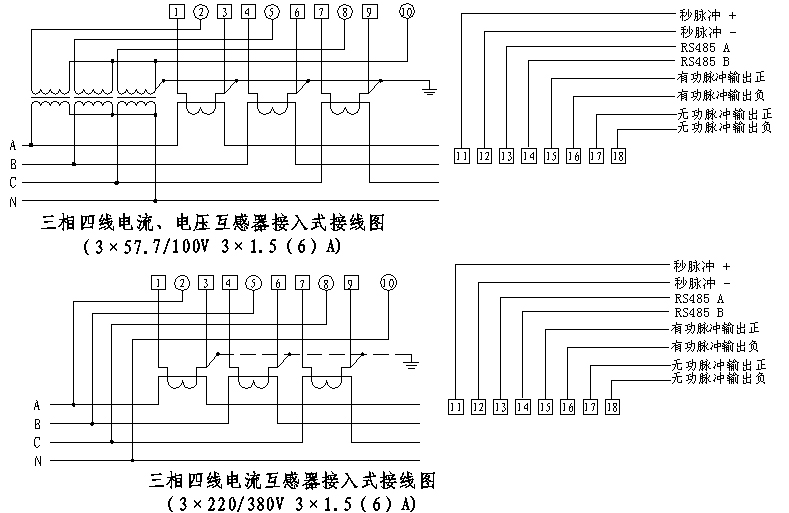

wiring diagram
